ファイバカップル音響光学Qスイッチ (FCAOQ)
General Specifications：(Wavelength and Frequency is optional)
|
Parameters |
Unit |
Type (SGQFXXX-XXXX-XX) “XXX”- represents for Working frequency ；“XXXX”- represents for operating wavelength ；“XX”- represents for type of fiber，“1” represents for sing mode fiber;“2”represents for large mode field fiber |
|
|---|---|---|---|
|
SGQF100-1064-1FB |
SGQF100-1064-2FB |
||
|
Working Wavelength |
nm |
1064 |
1064 |
|
IL |
dB |
2 |
2 |
|
Polarization Loss |
dB |
0.3~0.5 |
0.3~0.5 |
|
ER |
dB |
45 |
45 |
|
Rise Time |
ns |
40~200 Adjustable |
|
|
Power Consumption |
W |
2.0@200ns/100kHz |
|
|
Average Laser Light Tolerance |
W |
1 |
1 |
|
Peak Laser Light Tolerance |
Kw |
1 |
1 |
|
Supply Voltage |
V |
24 |
24 |
|
Fiber Length |
m |
1 |
1 |
|
Fiber Type |
– |
HI1060 |
Nufern 10/125 GSF |
|
Modulation |
– |
Default TTL |
|
|
Package |
– |
FB |
|

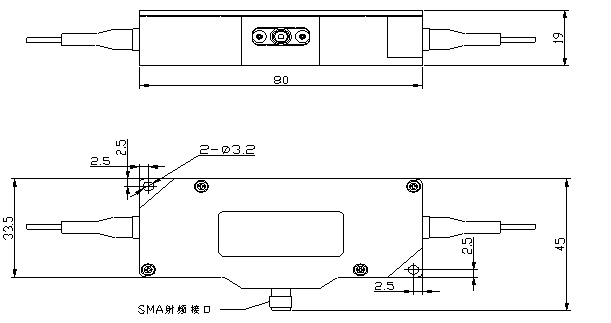

図面
ポイント
- 1064nm Qスイッチファイバーレーザ用途
- シングルモードファイバ(HI1060)
- ラージモードエリアファイバ(Nufern 10/125 GSF)
- 高安定性、高信頼性
- 低挿入損失、低消費電力
